Self-hosting Nextcloud: your own cloud behind Traefik

Your files, your calendar, your contacts – but on your server instead of at a cloud corporation. Nextcloud is the flagship of self-hosting: a full-featured cloud you run yourself. In this recipe we set it up cleanly behind Traefik, with its own database, caching and automatic HTTPS.

What are we building?

By the end, Nextcloud 34 runs behind your Traefik proxy, reachable at https://cloud.YOUR_DOMAIN with a valid Let’s Encrypt certificate. Nextcloud is your private cloud: sync files (like Dropbox), calendar and contacts across all devices, photos, notes, office documents. You connect the official desktop sync client and the phone apps with your server – the data lives exclusively with you.

We deliberately use the classic nextcloud image (not “Nextcloud All-in-One”) plus MariaDB as the database and Redis for caching and file locking. This combination is stable, well documented and fits exactly into the Traefik pattern from the Serverküche.

Prerequisites

• A running Traefik reverse proxy with the shared proxy network and the Let’s Encrypt resolver le – set up as in the tutorial reverse proxy with Traefik.
• A subdomain cloud.YOUR_DOMAIN whose DNS record (A/AAAA) points to your server IP – see connecting a domain to your server.
• A working backup. A cloud is the place where data loss hurts most – first set up backups with Restic.

How big your server should be for your user count is estimated by the server calculator in a few clicks.

Step by step

Step 1: Create the DNS record

At your DNS provider, create an entry cloud.YOUR_DOMAIN that points to your server IP (A record for IPv4, AAAA for IPv6). Check that it resolves:

dig +short cloud.YOUR_DOMAIN

You should see your server IP. Only once the record is set can Traefik fetch the HTTPS certificate later.

Step 2: Determine the proxy subnet

Nextcloud sits behind Traefik. So that Nextcloud’s brute-force protection recognizes the real visitor IP (and doesn’t ban the internal Traefik IP), we have to enter Traefik as a “trusted proxy”. For that you need the subnet of your proxy network:

docker network inspect proxy -f '{{(index .IPAM.Config 0).Subnet}}'

You get something like 172.18.0.0/16. Remember this value – it goes into the configuration as TRUSTED_PROXIES shortly.

Step 3: Create the compose.yaml

Create a folder and change into it:

mkdir -p ~/nextcloud && cd ~/nextcloud

Create the compose.yaml. Replace cloud.YOUR_DOMAIN, all passwords and the TRUSTED_PROXIES subnet from step 2:

services:
  nc-db:
    image: mariadb:11.4
    container_name: nc-db
    command: --transaction-isolation=READ-COMMITTED --log-bin=binlog --binlog-format=ROW
    environment:
      MARIADB_ROOT_PASSWORD: A_STRONG_ROOT_PASSWORD
      MARIADB_DATABASE: nextcloud
      MARIADB_USER: nextcloud
      MARIADB_PASSWORD: A_STRONG_DB_PASSWORD
    volumes:
      - nc_db:/var/lib/mysql
    healthcheck:
      test: ["CMD", "healthcheck.sh", "--connect", "--innodb_initialized"]
      interval: 10s
      timeout: 5s
      retries: 6
    networks: [default]
    restart: unless-stopped

  nc-redis:
    image: redis:8-alpine
    container_name: nc-redis
    command: redis-server --requirepass A_STRONG_REDIS_PASSWORD
    networks: [default]
    restart: unless-stopped

  nc-app:
    image: nextcloud:34-apache
    container_name: nc-app
    depends_on:
      nc-db:
        condition: service_healthy
      nc-redis:
        condition: service_started
    environment:
      MYSQL_HOST: nc-db
      MYSQL_DATABASE: nextcloud
      MYSQL_USER: nextcloud
      MYSQL_PASSWORD: A_STRONG_DB_PASSWORD
      REDIS_HOST: nc-redis
      REDIS_HOST_PASSWORD: A_STRONG_REDIS_PASSWORD
      NEXTCLOUD_TRUSTED_DOMAINS: cloud.YOUR_DOMAIN
      OVERWRITEPROTOCOL: https
      OVERWRITECLIURL: https://cloud.YOUR_DOMAIN
      TRUSTED_PROXIES: 172.18.0.0/16
      PHP_MEMORY_LIMIT: 1024M
      PHP_UPLOAD_LIMIT: 10G
    volumes:
      - nc_html:/var/www/html
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.nc.rule=Host(`cloud.YOUR_DOMAIN`)"
      - "traefik.http.routers.nc.entrypoints=websecure"
      - "traefik.http.routers.nc.tls.certresolver=le"
      - "traefik.http.routers.nc.middlewares=nc-dav"
      - "traefik.http.services.nc.loadbalancer.server.port=80"
      # .well-known redirect for CalDAV/CardDAV (see below)
      - "traefik.http.middlewares.nc-dav.redirectregex.regex=https://(.*)/.well-known/(?:card|cal)dav"
      - "traefik.http.middlewares.nc-dav.redirectregex.replacement=https://cloud.YOUR_DOMAIN/remote.php/dav/"
      - "traefik.http.middlewares.nc-dav.redirectregex.permanent=true"
    networks: [default, proxy]
    restart: unless-stopped

volumes:
  nc_html:
  nc_db:

networks:
  default:
  proxy:
    external: true

What matters here:

• Three containers: nc-app (Nextcloud), nc-db (MariaDB), nc-redis. Only nc-app is on the proxy network (for Traefik) and on the internal default network. Database and Redis stay exclusively internal – they have no ports: and are not reachable from outside.
• Two named volumes: nc_html (program code, config.php, user data) and nc_db (the MariaDB data). The nc_db volume is mandatory: without the entry, the database lands in an anonymous volume, and a docker compose down followed by up would lose it irrecoverably.
• healthcheck + depends_on: service_healthy: Nextcloud starts faster than the database initializes. Without this healthcheck the initial install fails with a “Connection refused”. This way the app container waits until MariaDB is really ready.
• NEXTCLOUD_TRUSTED_DOMAINS: without your own domain here, Nextcloud greets you with “Access through untrusted domain”.
• OVERWRITEPROTOCOL: https tells Nextcloud it runs behind HTTPS – otherwise it builds internal links as http:// and logins/redirects break.
• TRUSTED_PROXIES: the subnet from step 2. This lets Nextcloud recognize the real client IP; otherwise the brute-force protection bans the Traefik IP.
• PHP_MEMORY_LIMIT / PHP_UPLOAD_LIMIT: the defaults (512 MB) are too small for large uploads. Set generously here.
• loadbalancer.server.port=80: the Apache image listens on port 80 in the container.
• The nc-dav middleware solves a classic Nextcloud problem – more on that shortly.

Step 4: Start and run through the initial setup

Start the stack:

docker compose up -d

On the first start, MariaDB initializes the database and Nextcloud unpacks itself – that takes a minute or two. Follow it in the log:

docker compose logs -f nc-app

On the first run the image unpacks Nextcloud into the volume; you see lines like Initializing nextcloud 34.0.1.2 ... and finally Initializing finished, followed by the Apache start. If restarting appears repeatedly instead, take a look at the “When things go wrong” section. With Ctrl+C you leave the log view again (the container keeps running).

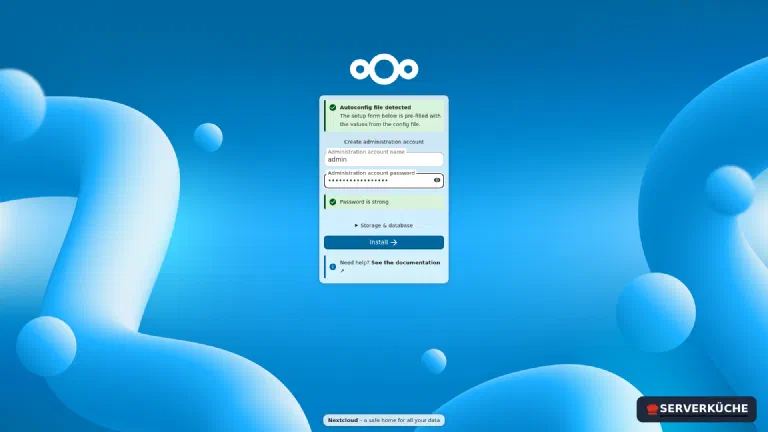

Then open https://cloud.YOUR_DOMAIN. Traefik fetches the certificate on the first access (can take a few seconds). Because we already configured the database and Redis via environment variables, Nextcloud detects that automatically and only asks for an administration account:

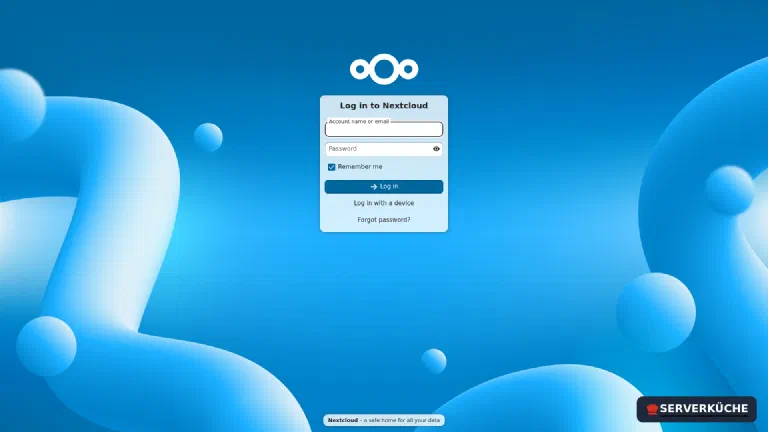

Set an admin name and a strong password and click Install. Nextcloud sets up the instance – after that you land on the login page:

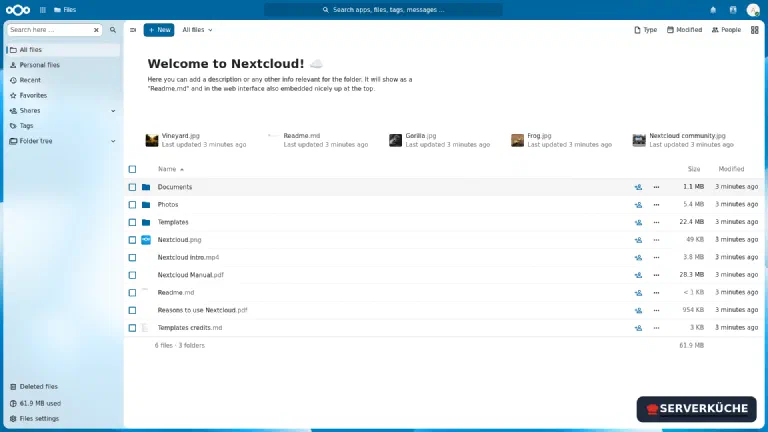

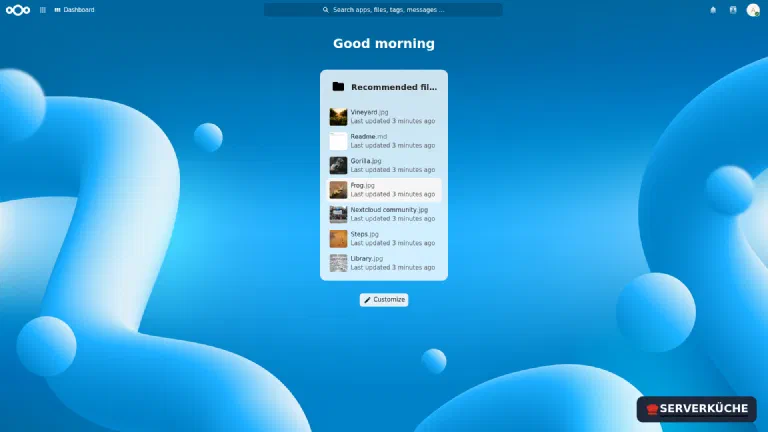

After the login, the dashboard greets you, and under Files you find your cloud with a few example files:

Step 5: Set up background jobs (cron)

Nextcloud has to perform tasks regularly (cleanup, notifications, thumbnails). By default this happens via “AJAX” on every page load – which is unreliable. The recommended way is a cron sidecar: a second container with the same image that only runs cron.php. Add a service to the compose.yaml:

  nc-cron:
    image: nextcloud:34-apache
    container_name: nc-cron
    entrypoint: /cron.sh
    depends_on:
      nc-db:
        condition: service_healthy
    volumes:
      - nc_html:/var/www/html
    networks: [default]
    restart: unless-stopped

The sidecar shares the nc_html volume with the app and runs the jobs every five minutes. Apply the change and set the mode in Nextcloud to “Cron”:

docker compose up -d
docker exec -u www-data nc-app php occ background:cron

Under Administration → Basic settings, “Cron” should now be active.

docker exec -u www-data nc-app php occ db:add-missing-indices
docker exec -u www-data nc-app php occ config:system:set default_phone_region --value=DE

Step 6: Connect the clients

Now the real benefit. There are three ways to use your cloud:

1. Desktop sync client (Windows/macOS/Linux): install the “Nextcloud Desktop” client, enter https://cloud.YOUR_DOMAIN as the server address, log in and choose a local folder. Files are synced like with Dropbox. With virtual files (Windows/macOS) they only take up space on the disk when you open them – handy when your cloud is larger than the local disk.
2. Phone app (Android/iOS): the official Nextcloud app, same server address. Ideal for automatic photo upload from the smartphone.
3. Calendar & contacts: in your device’s system settings, create a CalDAV/CardDAV account with the address https://cloud.YOUR_DOMAIN – thanks to the .well-known middleware from step 3, automatic detection works.

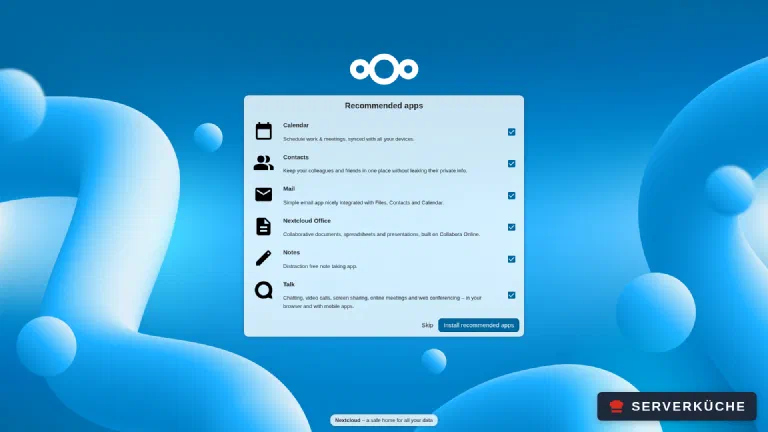

Features like calendar, contacts or mail are separate apps you install with one click under Administration → Apps – so Nextcloud is extensible without you touching anything on the server.

When things go wrong

Maintenance & backups

• Backups are mandatory for a cloud. A consistent backup needs three things: the database (MariaDB dump), the data directory (your files) and the configuration (config.php). Put Nextcloud into maintenance mode briefly before the backup so the database and files match each other:

  Terminal

  docker exec -u www-data nc-app php occ maintenance:mode --on
  docker exec nc-db mariadb-dump -u root -pA_STRONG_ROOT_PASSWORD nextcloud > nextcloud-db.sql
  docker exec -u www-data nc-app php occ maintenance:mode --off

  Back up the dump together with the nc_html volume encrypted and off-site with Restic – thanks to the dump you don’t need to additionally back up the raw nc_db volume. The nc_html volume contains both the program code and the config.php as well as – under data/ – your actual user files. If your cloud grows a lot, you can later move this data/ directory to a separate, larger volume; for now one volume for everything is enough.

• Updates: only one major version per step. From 34 to 35, never directly to 36. Bump the image tag (nextcloud:35-apache), then docker compose pull and docker compose up -d. The container runs the necessary occ upgrade automatically on start. Always make a backup first. Bump the cron sidecar to the same version.

• Check security. After setup, run the official Nextcloud Security Scan against your domain (target: grade A) and work through the warnings from the admin overview. The overview under Administration → Overview runs automatic checks and shows exactly what’s still missing. Keep Nextcloud up to date – security holes are closed promptly, but only if you update.

• Honest about the effort: a self-hosted cloud wants to be maintained. Reckon with an update pass roughly monthly and a regular look at the admin overview. In return, the data then really belongs to you.
